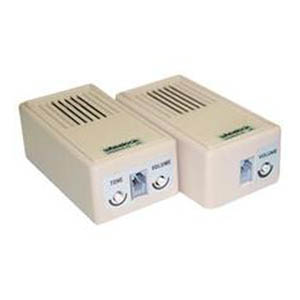

Wheelock CH-AT1-W Telephone Alert Chime

SKU: WH-CH-AT1-W Category:

$67.42

Wheelock CH-AT1-W Telephone Alert Chime WH-CH-AT1-W

  • Wheelock chime telephone alert
  • Nominal Voltage: 90VRMS, 20Hz
  • Input Voltage: 50-130VRMs, 20-30Hz
  • Ringer Equivalence: 0.4A
  • Voice Impedance: 100K OHMS @ 400Hz, 3VRMS
  • DC Impedance: Virtually Infinite (Blocking Capacitor)
  • Dial Spike Suppression: Meets EIA RS-470 Specs
  • Duty Cycle: 33% Max. with 10 Second Max. On-Time
  • Chime Delay Time: 1 Second
  • Minimum Ring Cycle On-Time: .8 Seconds
  • Input Jack: USOC RJ11C (Pin 3 - Ring; Pin 4 - Tip)
  • Minimum Chime Frequency: 750Hz
  • Maximum Chime Frequency: 1200Hz
  • Max volume: 80 dBA
